Accept or Reject decisions
Make inspection calls with ease. Quality disposition decisions can be done within seconds through the decision plugin. Decisions can be done on an indication level or based on the full image.
One software for every task
The flexible user-friendly interface can be entirely customized to match the preferences of each individual user. A comprehensive range of tools aids you in analyzing and evaluating, regardless of the operator.
Key functions
-
Full control of the imaging chain (generator, detector, and peripherals)
-
Extended functionalities: IQI measurements, filters, overlays, etc.
-
Sequence builder enables the automation of every functionality of the software in a few clicks
-
Multiple and configurable user levels via advanced rights management
-
Optimized for offline evaluation requirements
-
Provides quick evaluation and annotation functionalities
-
Fully customizable and configurable according to individual
-
Seamlessly integrated with ADR functionalities (e.g. assisted or automated defect recognition)
-
Compliant to leading standards including DICONDE
-
Fulfills all the latest standards in Aerospace, Space, Automotive, and Oil & Gas industry

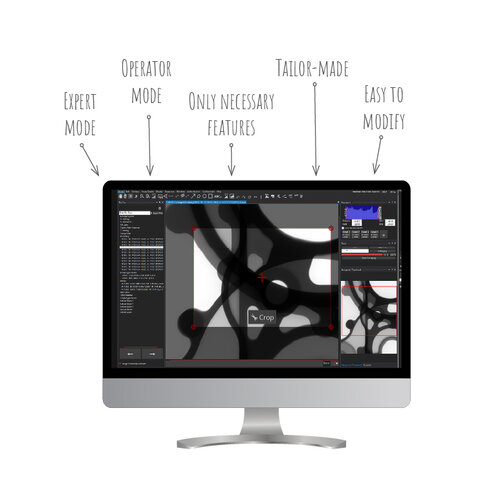

Easy customization of frontend and workflows
- Fresh graphical user interface (GUI) adaptable to almost any language
- The flexible and intuitive user interface can be completely customized to each user’s preference. A wide range of tools, which you can adapt according to your needs, supports you in the analysis and evaluation of images, ensuring compliance with established standards.
- The software can be tailored to the specific needs and application of the customer, regardless of the manufacturer of the inspection hardware used.
- Drag and drop tools according to your comfort level
- Comprehensive user access rights management functionality
- Genrerate your own user interface templates
Touchscreen control interface
The VC.acquire is also available with a touchscreen mode, which is optimized for usage on tablets or machine interfaces (HMIs).
- Dedicated design for touch operation
- Can be operated with gloves and in rough environments
- Full feature set available even in touch mode
- Optimized for ease of use
Lets talk about features
Explore the comprehensive feature set of our software platform.
This overview shows just a fraction of the available features. To review the full list, please request the technical specification.
Image quality assessment
A comprehensive set of advanced measurement tools assist you with your inspections according to standards such as SNR, SNRN, CNR (ASTM E2737, ASTM E2698), Contrast Sensitivity, Duplex Wire (SRb), Histogram ROI, Signal Level, and more.
DICONDE
DICONDE file format support, ensures that images can be viewed and processed by any other DICONDE-compatible system. Even X-ray images created by other suppliers can also be easily imported and evaluated.
Filters and image enhancements
Image filters and tools make simple and effective evaluation possible. To streamline the process, you can also save optimal evaluation settings for future use with additional images.
Annotations / Overlays
Mark and highlight indications and defects using our annotation and overlay tools. Whether circles, squares, polygons, arrows, or simply text. The software offers a comprehensive palette of tools. Each overlay can be individually styled and configured.
Keyboard and mouse shortcuts
The device‘s image acquisition is extremely fast and intuitive, with real-time inspection, automatic defect detection, and a perfect in-line integration configurable for simple keyboard shortcuts or mouse clicks.
One Click Quick Enhancements
Discover hidden defects using our image processing and filtering tools. Our single-click Quick Enhancements are designed for rapid analysis and evaluation. Experts can easily build their own custom filters through the software.
Leverage Artificial Intelligence (AI)
The software platform can be upgraded with an extensive AI-powered defect detection module. It can detect, annotate, classify, and measure defects within less than a second.
Extensive suite of measurement tools
Precise and reliable measurements are a key factor to achieving great inspection results. The software offers a comprehensive suite of tools such as line profiles, histogram measurements, angles, area measurements and many more.
Record and replay inspection steps
Easily automate repetitive tasks with the sequence builder. Every function in the software can be quickly recorded into a macro that can be replayed later. This allows for rapid execution of even the most demanding processes.
Embedded hardware control
No need for additional software and tools. Control all image chain devices like detectors, X-ray generators, collimators, or filter units directly from the VC.acquire. Hardware controls can also be easily automated using sequences.
In-software display of reference images
Reference images can be viewed inside the image processing software side-by-side with the image of the inspected object. Make faster and even more accurate calls by referring back to the right ASTM levels or your own defect reference catalog.
Accept or Reject decisions
Make inspection calls with ease. Quality disposition decisions can be done within seconds through the decision plugin. Decisions can be done on an indication level or based on the full image.
Image quality assessment
A comprehensive set of advanced measurement tools assist you with your inspections according to standards such as SNR, SNRN, CNR (ASTM E2737, ASTM E2698), Contrast Sensitivity, Duplex Wire (SRb), Histogram ROI, Signal Level, and more.
DICONDE
DICONDE file format support, ensures that images can be viewed and processed by any other DICONDE-compatible system. Even X-ray images created by other suppliers can also be easily imported and evaluated.
Filters and image enhancements
Image filters and tools make simple and effective evaluation possible. To streamline the process, you can also save optimal evaluation settings for future use with additional images.
Annotations / Overlays
Mark and highlight indications and defects using our annotation and overlay tools. Whether circles, squares, polygons, arrows, or simply text. The software offers a comprehensive palette of tools. Each overlay can be individually styled and configured.
Keyboard and mouse shortcuts
The device‘s image acquisition is extremely fast and intuitive, with real-time inspection, automatic defect detection, and a perfect in-line integration configurable for simple keyboard shortcuts or mouse clicks.
One Click Quick Enhancements
Discover hidden defects using our image processing and filtering tools. Our single-click Quick Enhancements are designed for rapid analysis and evaluation. Experts can easily build their own custom filters through the software.
Leverage Artificial Intelligence (AI)
The software platform can be upgraded with an extensive AI-powered defect detection module. It can detect, annotate, classify, and measure defects within less than a second.
Extensive suite of measurement tools
Precise and reliable measurements are a key factor to achieving great inspection results. The software offers a comprehensive suite of tools such as line profiles, histogram measurements, angles, area measurements and many more.
Record and replay inspection steps
Easily automate repetitive tasks with the sequence builder. Every function in the software can be quickly recorded into a macro that can be replayed later. This allows for rapid execution of even the most demanding processes.
Embedded hardware control
No need for additional software and tools. Control all image chain devices like detectors, X-ray generators, collimators, or filter units directly from the VC.acquire. Hardware controls can also be easily automated using sequences.
In-software display of reference images
Reference images can be viewed inside the image processing software side-by-side with the image of the inspected object. Make faster and even more accurate calls by referring back to the right ASTM levels or your own defect reference catalog.
Features and packages
Configure the software to your needs *
Only pay for what you really need!
The VC.acquire and VC.review are available in several variants from a Basic version with the essential tools up to a fully-fledged PRO version. Or anything in between.
* These are only a fraction of available productivity features. To review the full list, please request the technical specification
